09330162711
Názov produktu: Han E 16 Pos. F Insert Screw 17-32
Výrobca: HARTING
16.14€ / KS
s DPH: 19.85€Part number: 09 33 016 2711
Inserts
Screw termination
Female
Polycarbonate (PC)
RAL 7032 (pebble grey)
Rated current: 16 A
Size: 32 B
Contacts: 32
Conductor cross-section: 0.75 ... 2.5 mm²
Copper alloy
Silver plated
09 33 016 2711
| Number of power contacts | 32 |
| Contact insert without contacts | false |
| Contact type | Bus |
| Number of poles | 32 |
| Material connector insert | Thermoplastic |
| Rated current In | 16 A |
| Operating temperature | -40 ... 125 °C |
| Rated voltage | 500 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
| Type of electric connection | Screw connection |
| With wire protection | true |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.75 ... 2.5 mm² |
| Connectable conductor cross section multi-wired | 0.75 ... 2.5 mm² |
| Material of contact surface | Silver |
| Material of contact insert | Thermoplastic |
| Material contact | Other copper alloys |
| Inflammability class of insulation material according to with UL94 | V0 |
| With protective conductor | true |
| Min. number of insertion cycles | 500 |
| Data sheet |
|
| Certificate |
|
| Technical sheet |
|
| CAD file |
|
Súvisiace produkty
09330162601
Výrobca: HARTING
Dostupnosť: SKLADOM
15.29€ s DPH: 18.81€

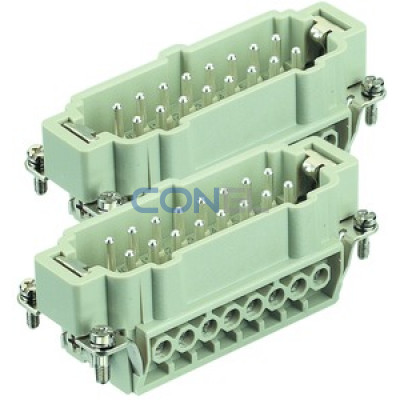

09330162611
Výrobca: HARTING
Dostupnosť: Dodací termín na vyžiadanie
15.29€ s DPH: 18.81€
09330162701
Výrobca: HARTING
Dostupnosť: SKLADOM
16.14€ s DPH: 19.85€

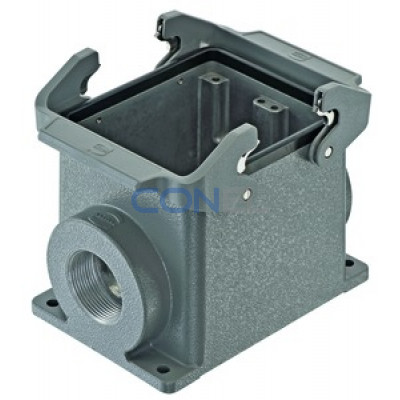

19300320272
Výrobca: HARTING
Dostupnosť: Dodací termín na vyžiadanie
75.94€ s DPH: 93.41€

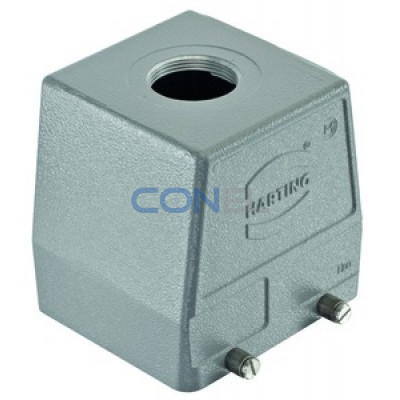

19300320428
Výrobca: HARTING
Dostupnosť: Dodací termín na vyžiadanie
59.46€ s DPH: 73.14€

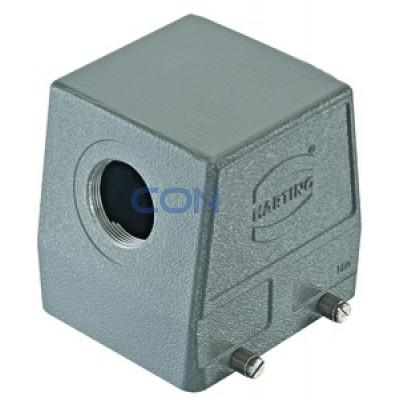

19300320527
