09451819001XL

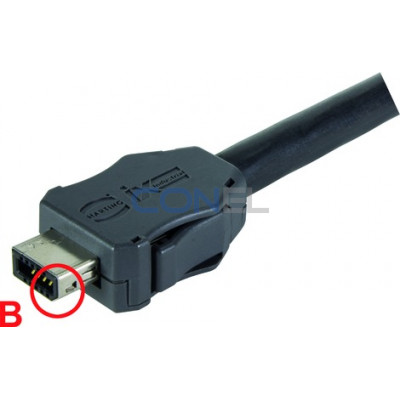

Názov produktu: ix Industrial 10B-1 plug SL-I26
Výrobca: HARTING
Dostupnosť: Dodací termín na vyžiadanie
11.71€ / KS
s DPH: 14.40€Connectors
IDC termination
Rated current: 1.5 A
Contacts: 10
Copper alloy
Au over Ni
Degree of protection: IP20
IDC termination
Rated current: 1.5 A
Contacts: 10
Copper alloy
Au over Ni
Degree of protection: IP20
| Contact type | Other |
| Number of poles | 10 |
| Rated current In | 1.5 A |
| Type of electric connection | Insulation displacement connection |
| Material of contact surface | Nickel/gold |
| Material contact | Other copper alloys |
| Material insulation body | Polyamide (PA) |
| Material housing | Other |
| Coating housing | Other |
| Locking mechanism | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| With protective conductor | false |
| Operating temperature | 85 °C |
| Degree of protection (IP), mounted | IP20 |
| EMC-version | true |
| Position cable feed | Other |
