10330060716
Názov produktu: Han-Kit® 6B - 6PIN - ES PRESS
Výrobca: HARTING
Dostupnosť: Skladom 2KS
Katalógová cena: 79.00€ bez DPH
Vaša cena:
76.18€ / KS
s DPH: 93.70€Han-Kit® 6B - 6PIN

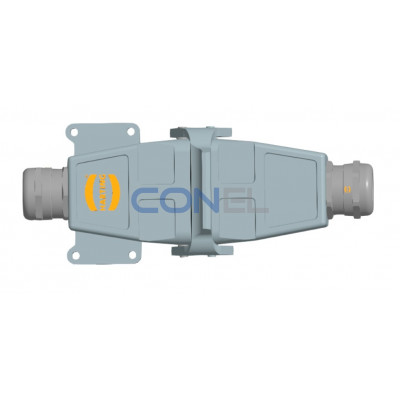

Hood Han® 6 B
Material: Die cast aluminium alloy
Protection degree: IP 65
Hood Coupler 6B
Single locking lever
Cable gland: M25 - metal
Cable diameter: 13 - 18 mm

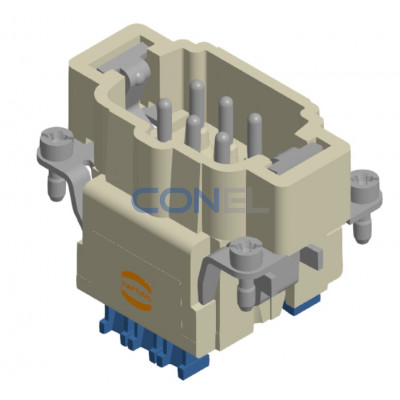

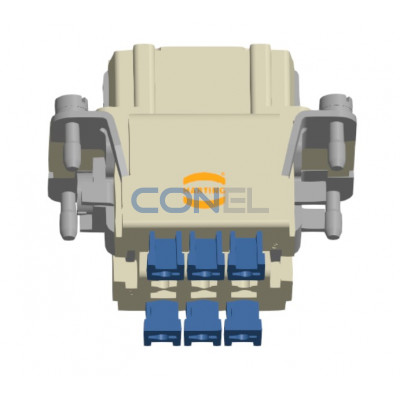

Insert: Han® 6 B, 6-pins + PE
Cage-clamp termination: 0.14-2.5 mm²
ES PRESS: conelHan_ES_Press_3_Ecat.pdf
Electrical data accd. to DIN EN 61 984
Rated current: 16A
Rated voltage: 500V
Rated impulse voltage: 6kV
Pollution degree: 3
Rated voltage: accd. to UL/CSA 600 V
