09300241301

Názov produktu: Han 24B-Base Panel 2 Levers IP67

Výrobca: HARTING

Dostupnosť: Skladom 6KS

22.75€ / KS

s DPH: 27.30€

Množstvo

Bulkhead mounted housing
Size: 24 B
Low construction
Double locking lever
Polycarbonate (PC)
Stainless steel
Material (hood/housing): Aluminium die-cast
Powder-coated
RAL 7037 (dust grey)
Material (seal): NBR
Degree of protection: IP65
IP67

Type of housing	Housing extension
Material housing	Aluminium
Coating housing	Powder coating
Colour housing	Grey
Position cable feed	Other
Position of the shackle	Base unit
With cable screw gland	false
Mounting method of the cable gland	None
With hinged lid	false
With distance piece	false
With sealing	true
Locking mechanism	Double locking levers
Inflammability class of insulation material according to with UL94	Other
Operating temperature	-40 ... 125 °C
EMC-version	false
Corrosion resistant	false
UV resistant	false
Degree of protection (IP), mounted	IP65

Data sheet
Certificate
Technical sheet
CAD file

Súvisiace produkty

09330242601

Názov produktu: Han E 24 Pos. M Insert Screw
Výrobca: HARTING
Dostupnosť: SKLADOM

21.27€ s DPH: 25.52€

09330242701

Názov produktu: Han E 24 Pos. F Insert Screw
Výrobca: HARTING
Dostupnosť: SKLADOM

22.54€ s DPH: 27.05€

19300240427

Názov produktu: Han B Hood Top Entry HC M32
Výrobca: HARTING
Dostupnosť: SKLADOM

27.19€ s DPH: 32.63€

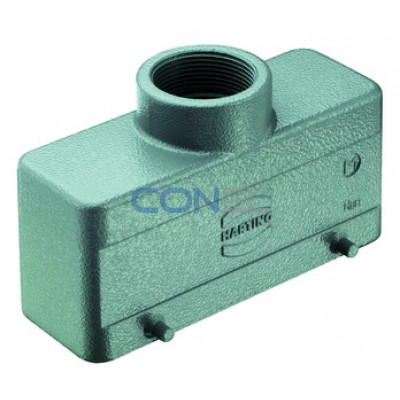

19300241422
