09210073001
Názov produktu: Han D 7 Pos. M Insert Crimp
Výrobca: HARTING
4.92€ / KS
s DPH: 6.05€Inserts
Crimp termination
Male
Polyamide (PA)
RAL 7032 (pebble grey)
Rated current: 10 A
Size: 3 A
Contacts: 7
Conductor cross-section: 0.14 ... 2.5 mm²
**Only for thermoplastic hoods / housings
| Number of power contacts | 7 |
| Contact insert without contacts | false |
| Contact type | Pin |
| Number of poles | 7 |
| Material connector insert | Thermoplastic |
| Rated current In | 10 A |
| Operating temperature | -40 ... 125 °C |
| Rated voltage | 50 V |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
| Type of electric connection | Crimp connection |
| With wire protection | false |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14 ... 2.5 mm² |
| Connectable conductor cross section multi-wired | 0.14 ... 2.5 mm² |
| Material of contact surface | Other |
| Material of contact insert | Thermoplastic |
| Material contact | Other |
| Inflammability class of insulation material according to with UL94 | HB |
| With protective conductor | true |
| Min. number of insertion cycles | 500 |
| Data sheet |
|
| Certificate |
|
| Technical sheet |
|
| CAD file |
|
Súvisiace produkty
09150006101
Výrobca: HARTING
Dostupnosť: SKLADOM
0.76€ s DPH: 0.93€
09150006102
Výrobca: HARTING
Dostupnosť: SKLADOM
0.76€ s DPH: 0.93€
09150006103
Výrobca: HARTING
Dostupnosť: SKLADOM
0.76€ s DPH: 0.93€
09150006105
Výrobca: HARTING
Dostupnosť: SKLADOM
0.76€ s DPH: 0.93€

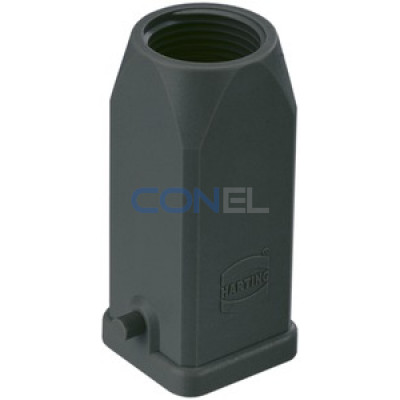

09200030427
